产品介绍
设计特点:
A. 有铁芯技术
B. 高推力
C. 低齿槽力
D. 标配霍尔传感器
相关证书:
EU Declaration of Conformity_- RoHs 3 >>>
规格/3D图纸
电机线圈
|
线圈长度 (mm) |
持续力 (N) @100℃ |
峰值力 (N) |
AKM30-B1 |
112 |
108.4 |
241.6 |
AKM30-B2 |
196 |
216.8 |
483.2 |
AKM30-B4 |
364 |
433.6 |
966.3 |
AKM50-B1 |
112 |
180.7 |
402.6 |
AKM50-B2 |
196 |
361.3 |
805.3 |
AKM50-W-B2 |
196 |
579.6 |
805.3 |
AKM50-B4 |
364 |
722.6 |
1610.5 |
AKM50-W-B4 |
364 |
1159.3 |
1610.5 |
AKM100-B1 |
112 |
361.3 |
805.3 |
AKM100-B2 |
196 |
722.6 |
1610.5 |
AKM100-W-B2 |
196 |
1159.3 |
1610.5 |
AKM100-B4 |
364 |
1445.3 |
3221.1 |
AKM100-W-B4 |
364 |
2318.5 |
3221.1 |
AKM150-B4 |
364 |
2167.9 |
4831.6 |
AKM150-W-B4 |
364 |
3477.8 |
4831.6 |
AKM150-B8 |
700 |
4335.9 |
9663.2 |
AKM150-W-B8 |
700 |
6955.5 |
9663.2 |
AKM200-B4 |
364 |
2890.6 |
6442.2 |
AKM200-W-B4 |
364 |
4637.0 |
6442.2 |
AKM200-B8 |
700 |
5781.2 |
12884.3 |
AKM200-W-B8 |
700 |
9274.0 |
12884.3 |

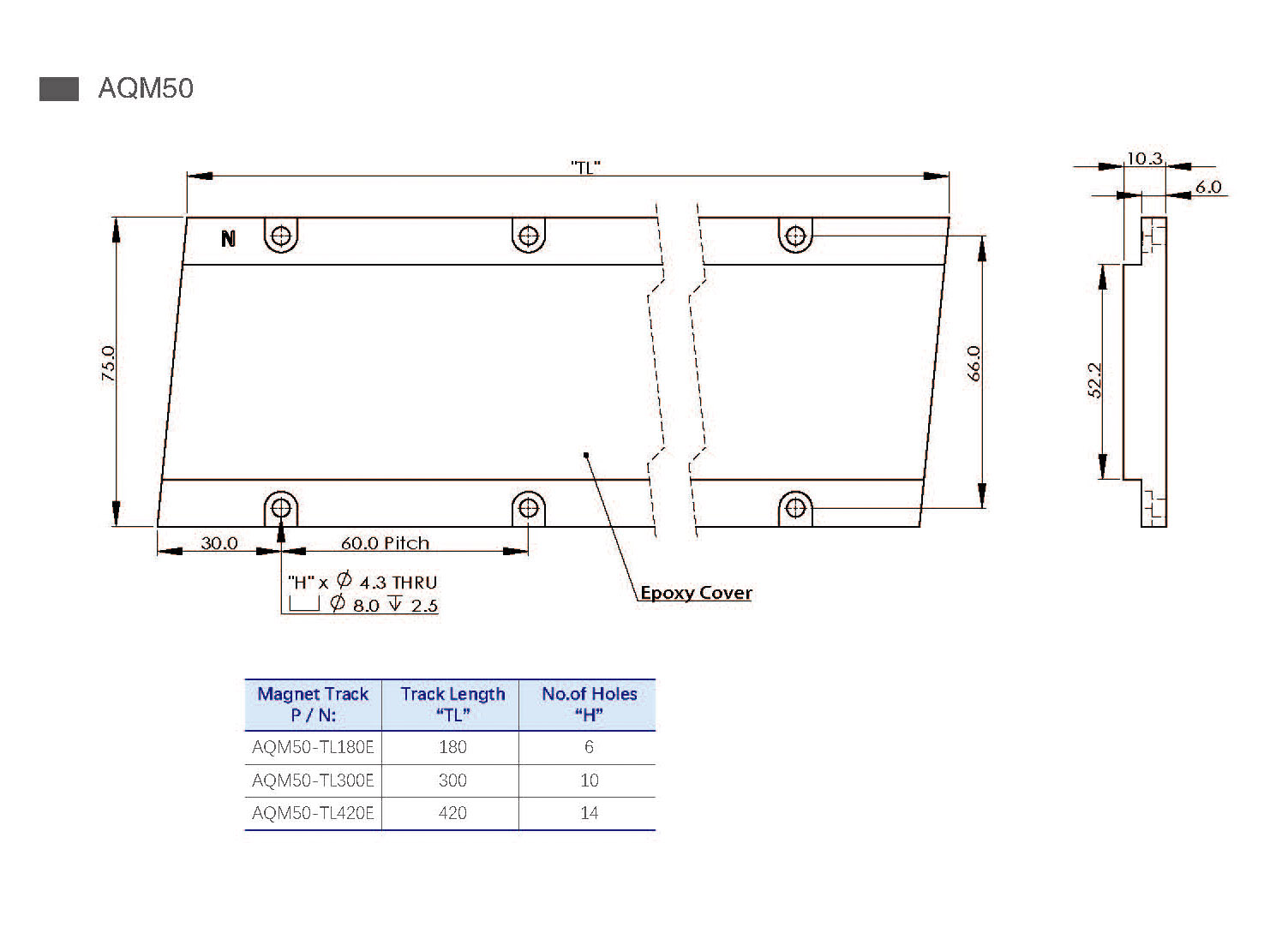

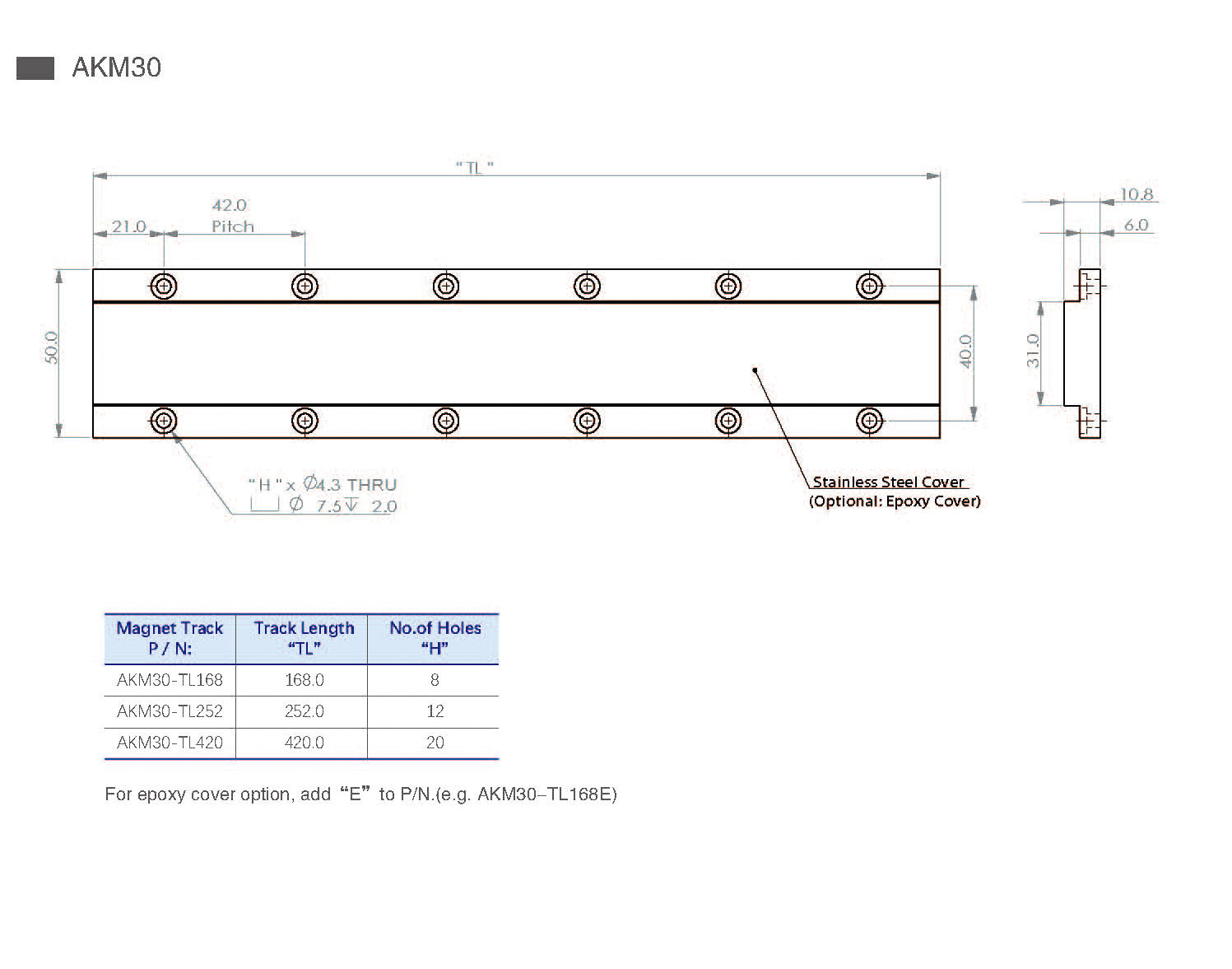

电机磁轨
型号 |
磁轨长度 (mm) |
AKM-TL180 |
180 |
AKM-TL252 |
252 |
AKM-TL420 |
420 |

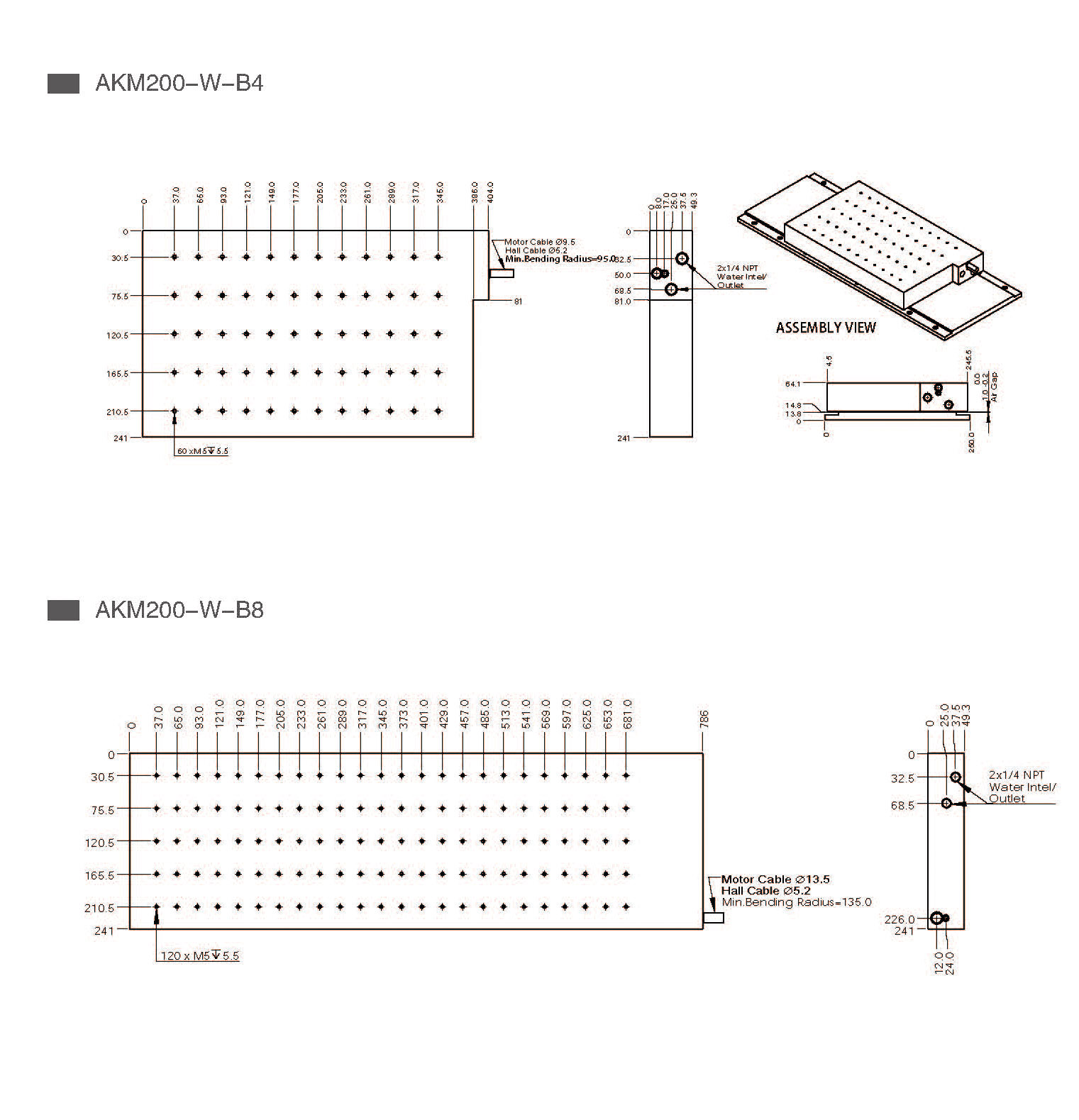

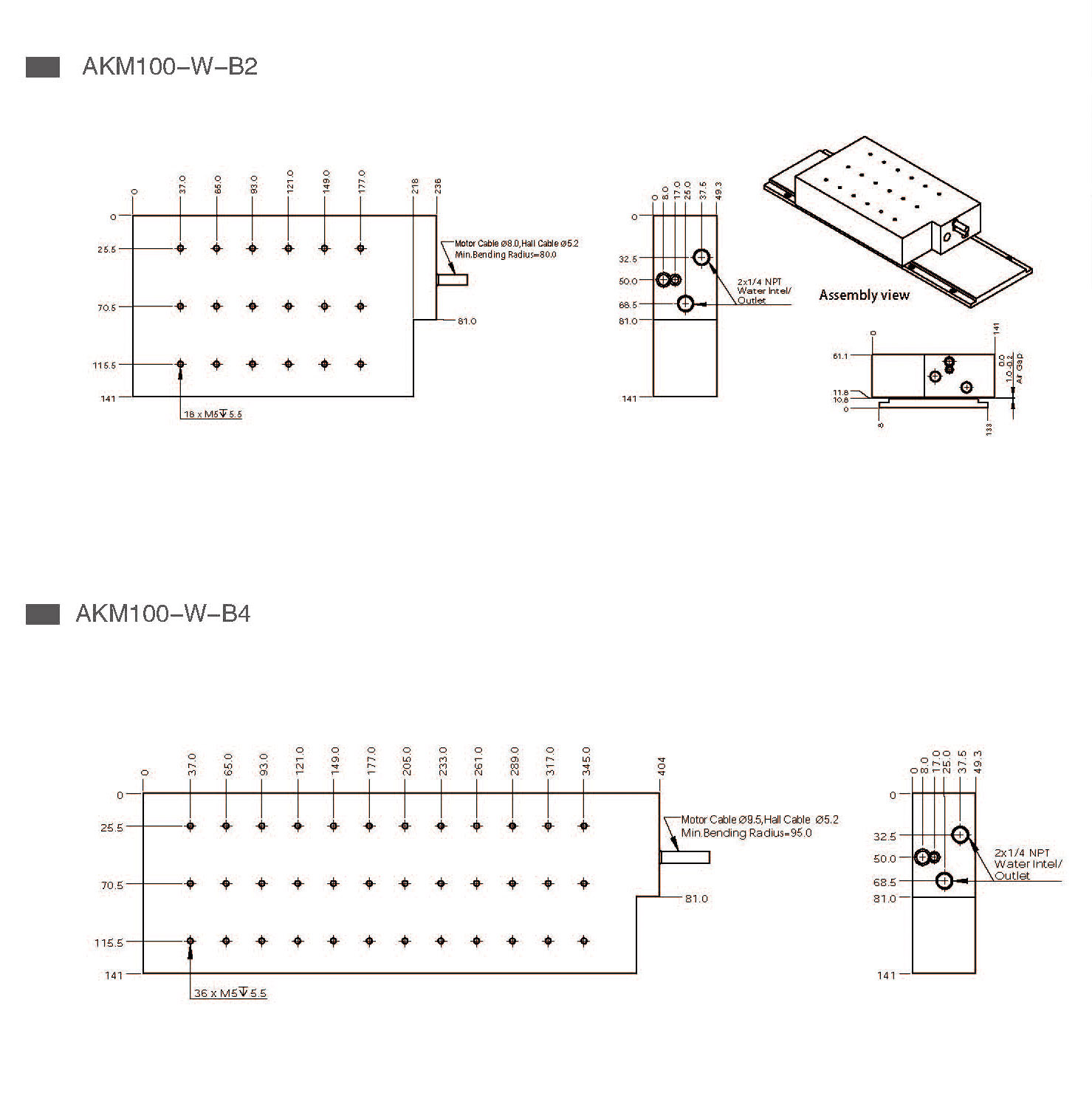

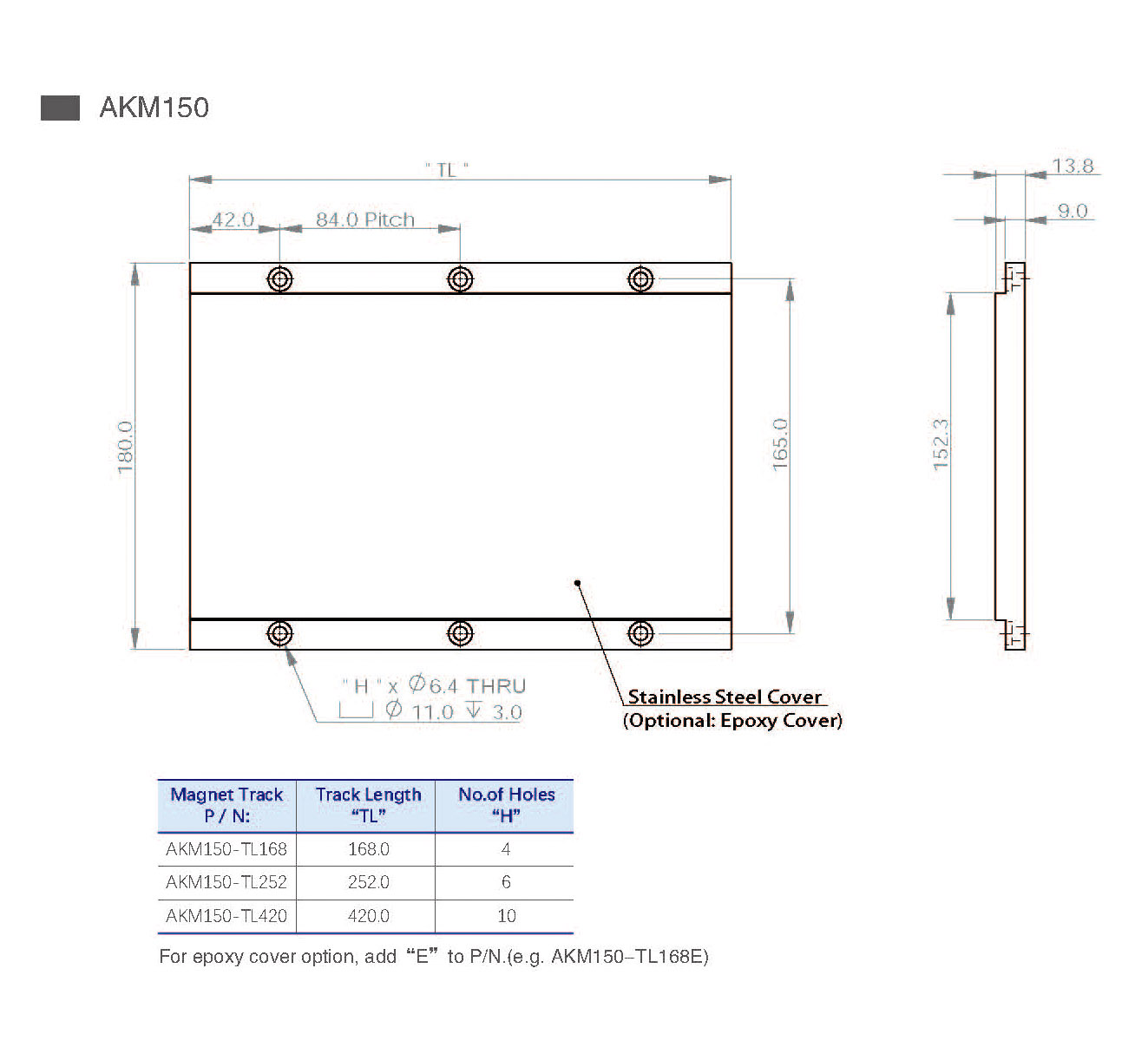

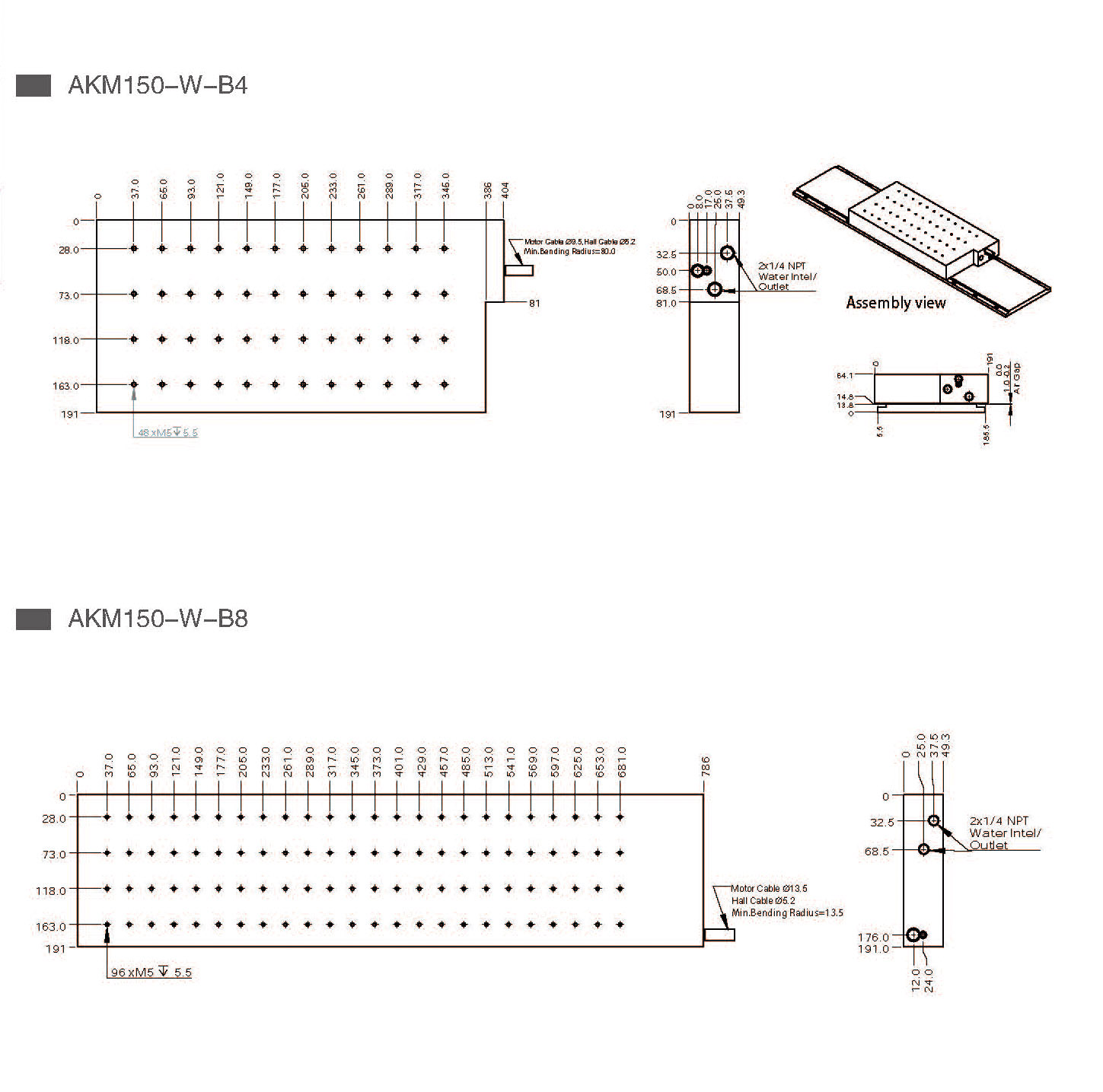

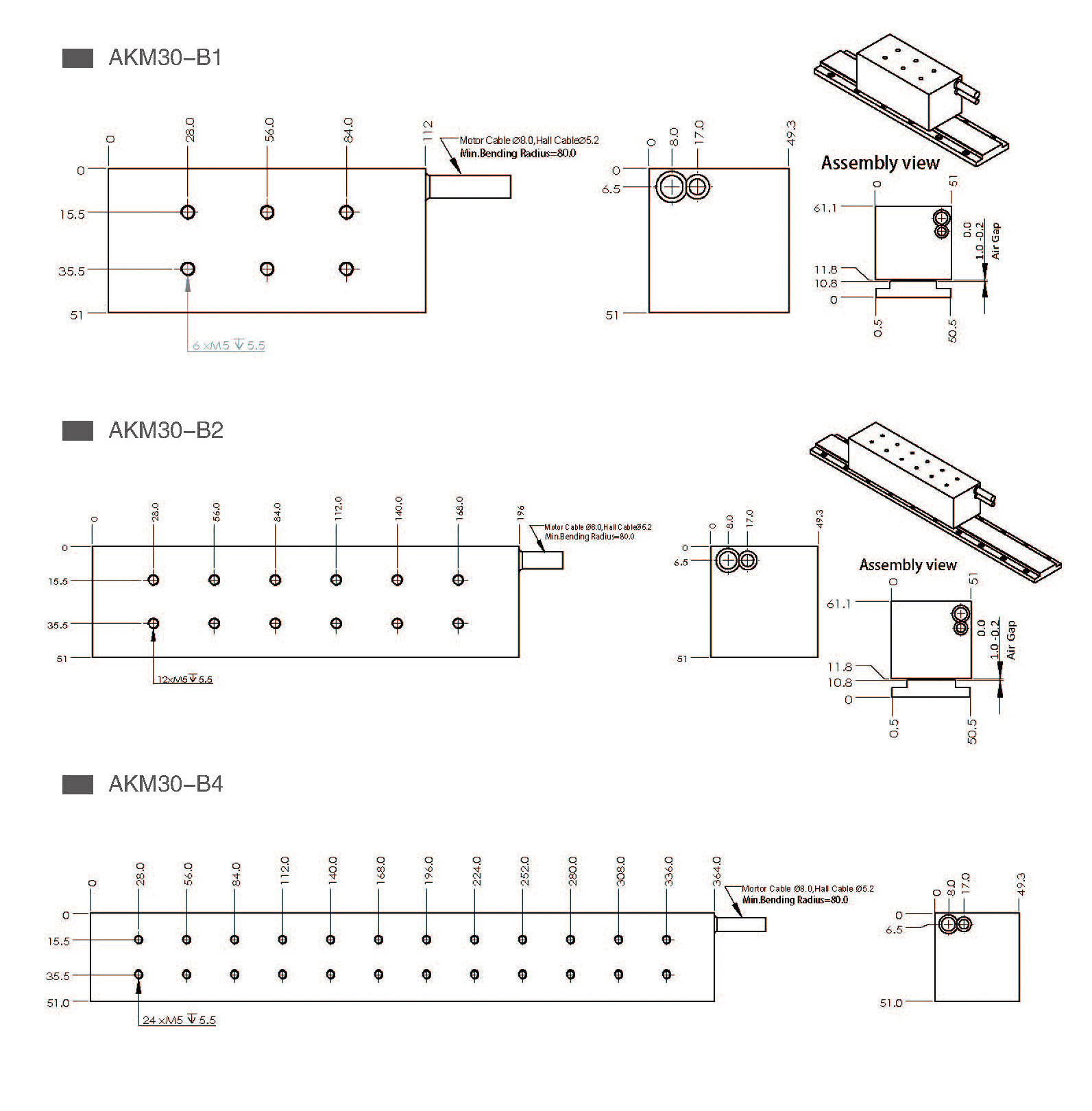

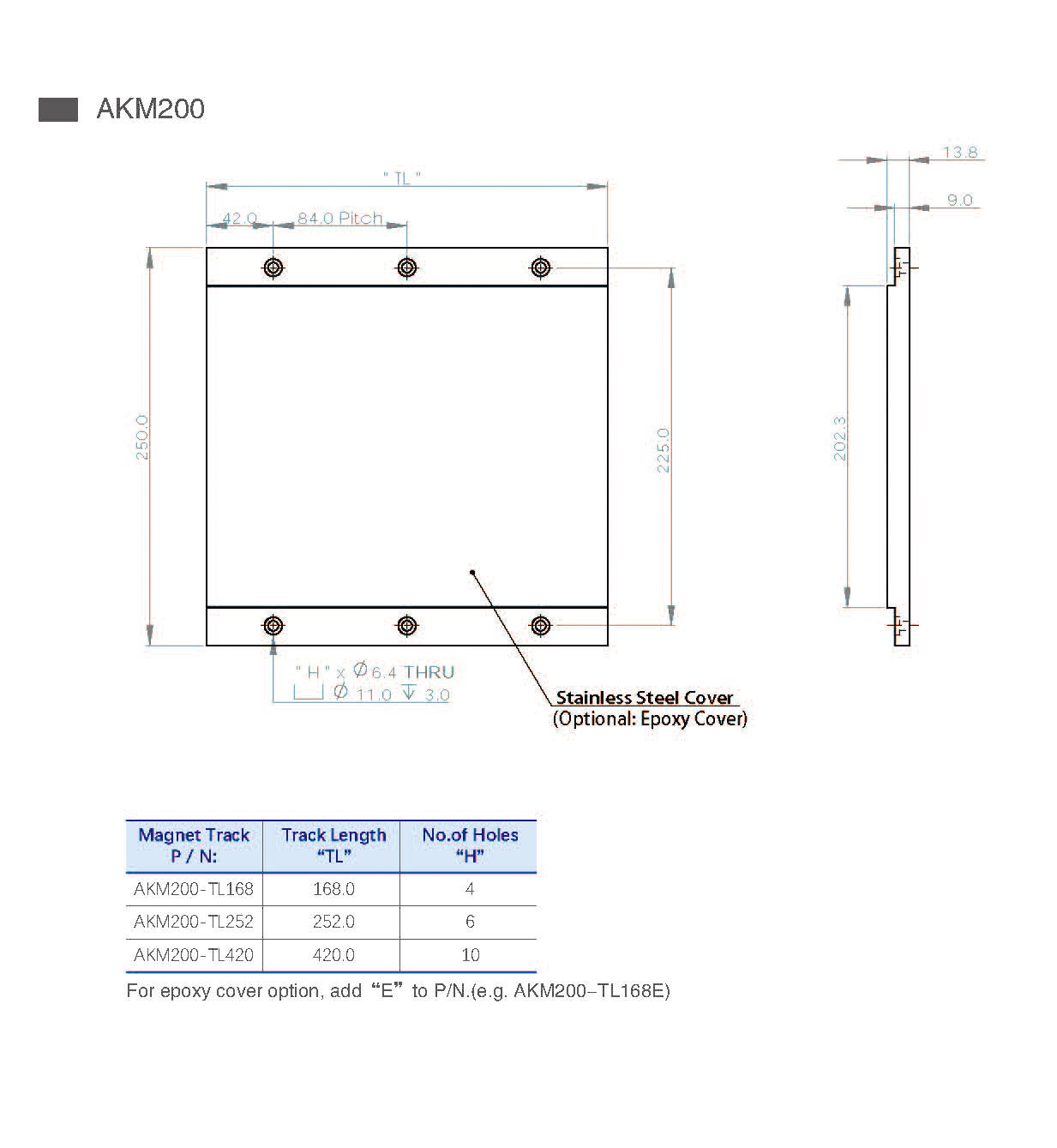

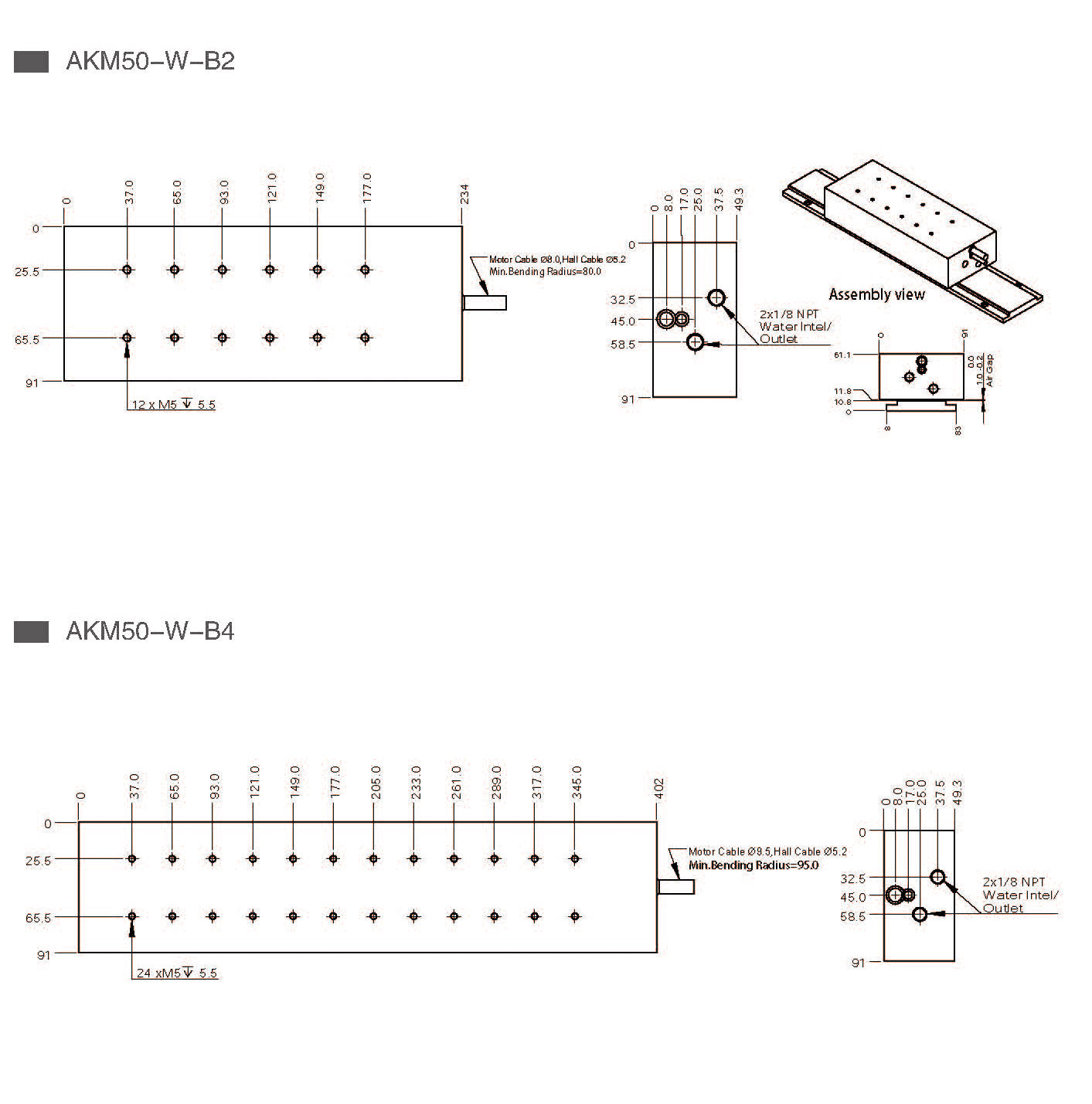

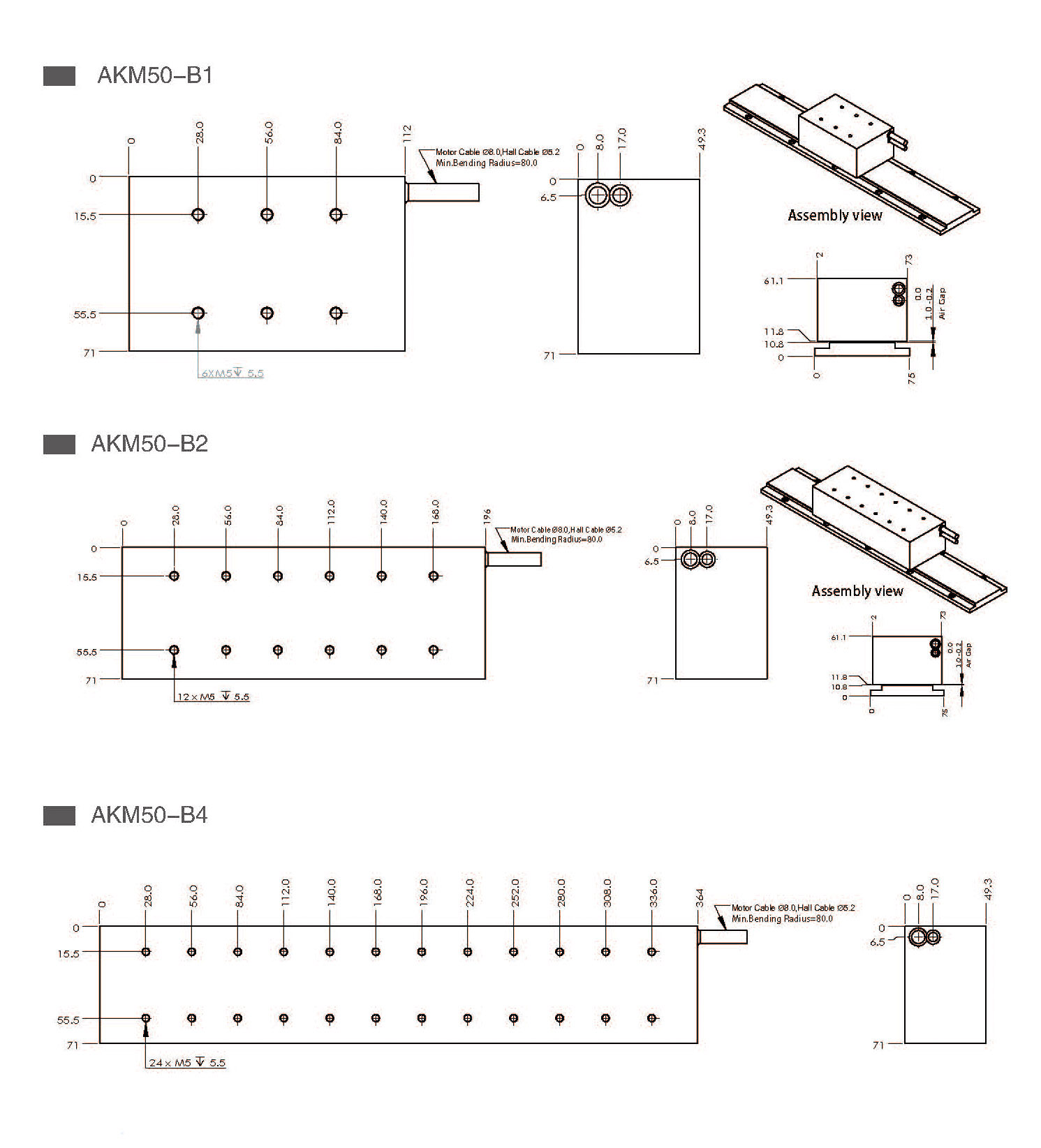

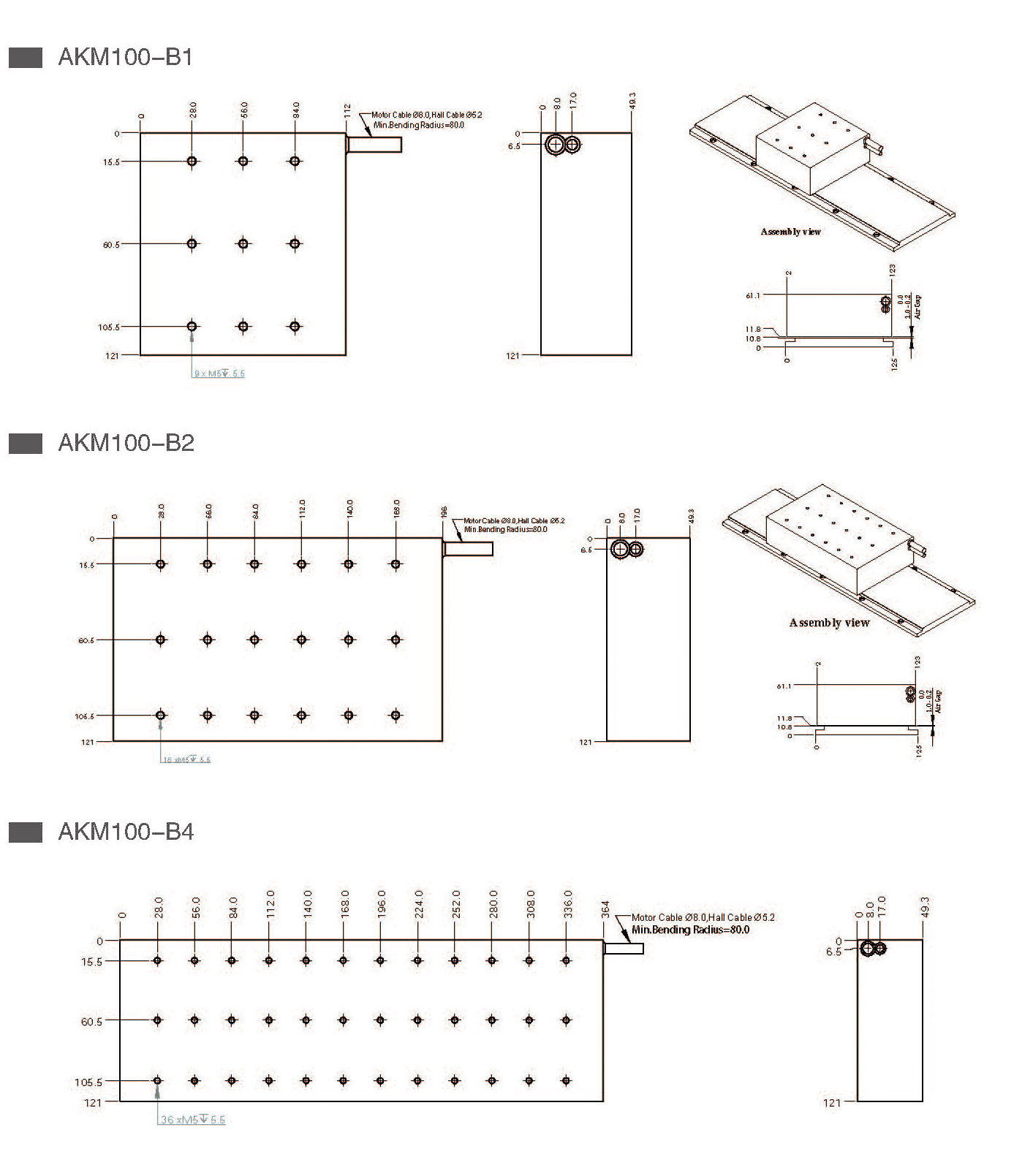

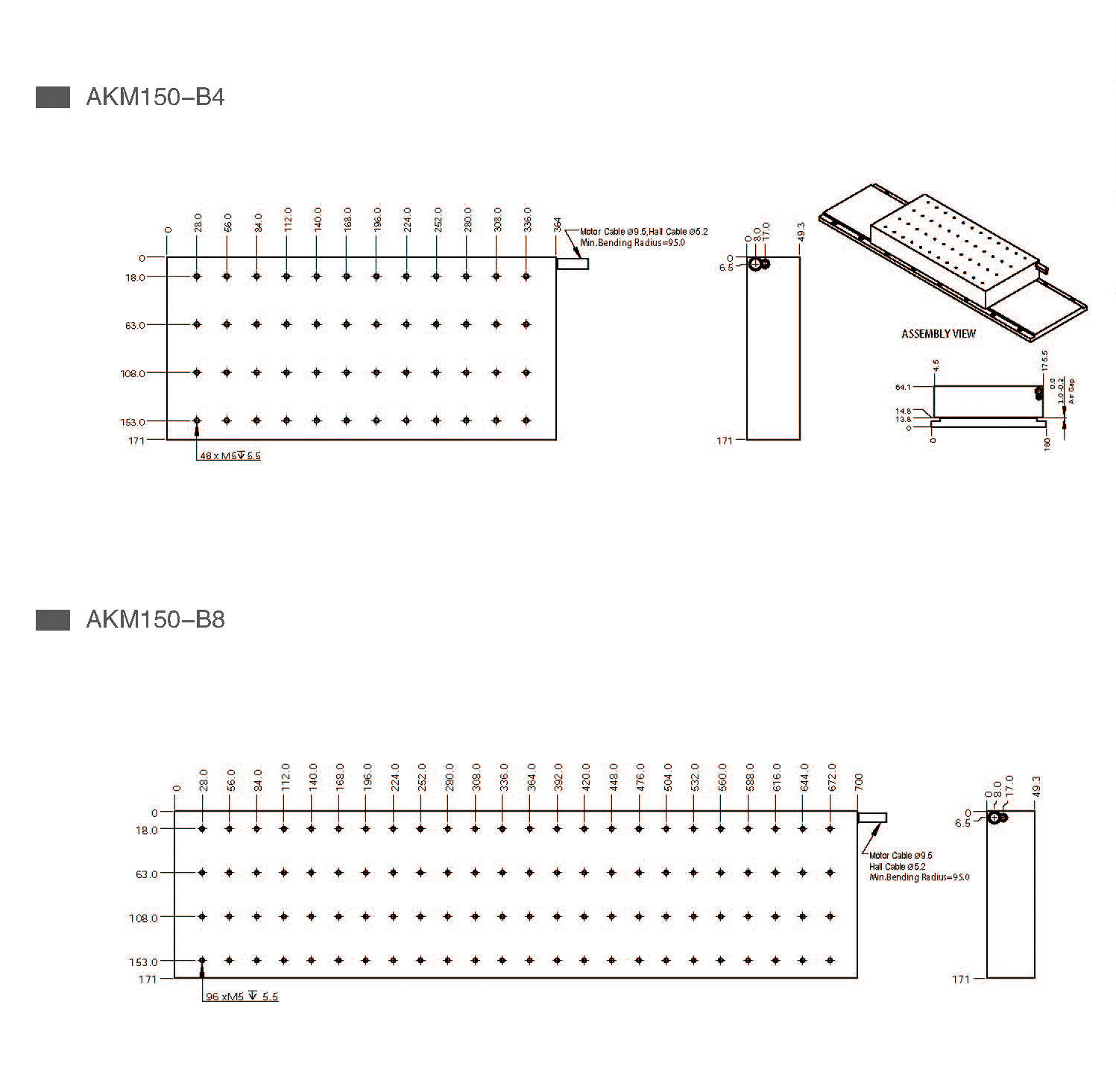

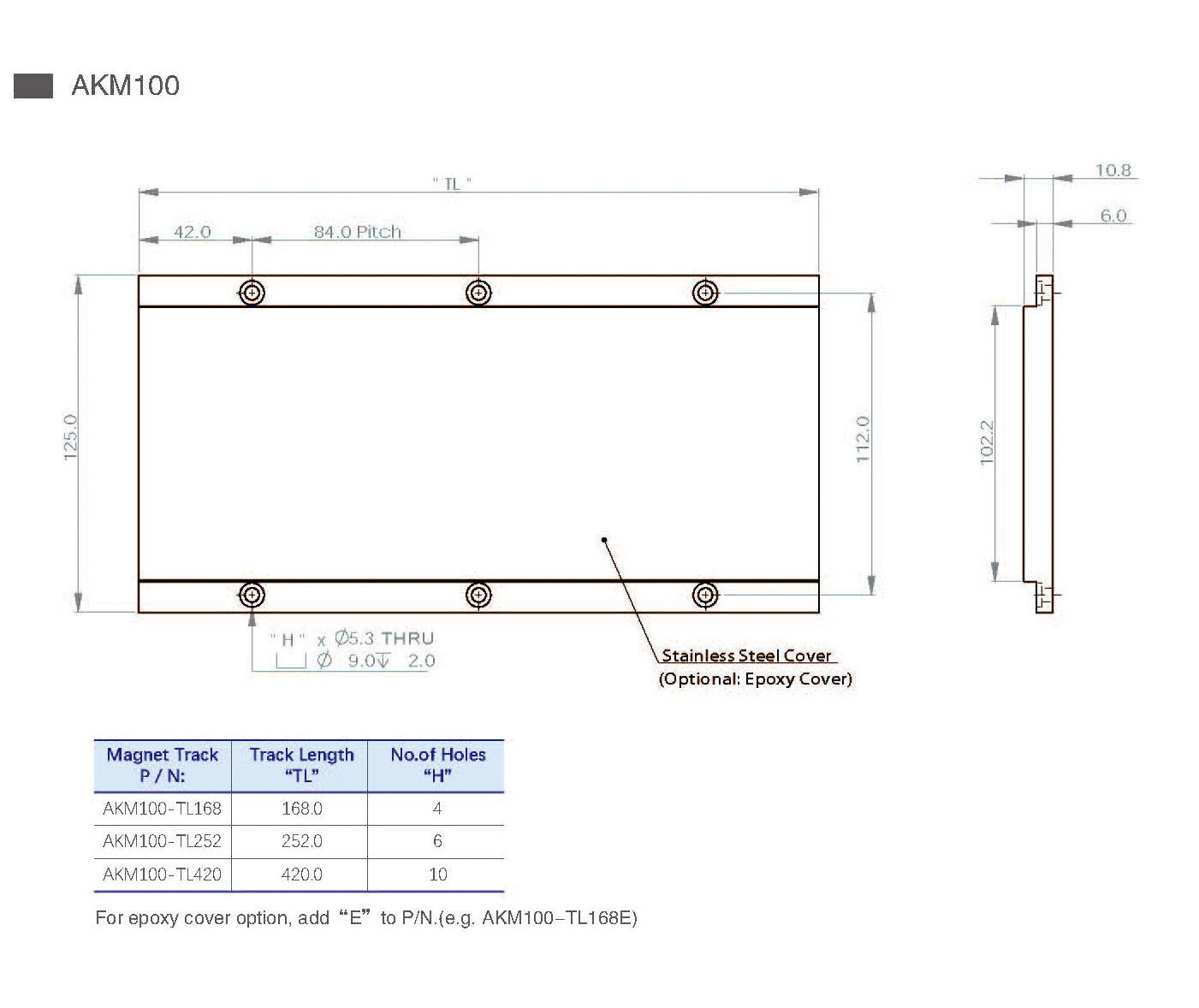

尺寸图

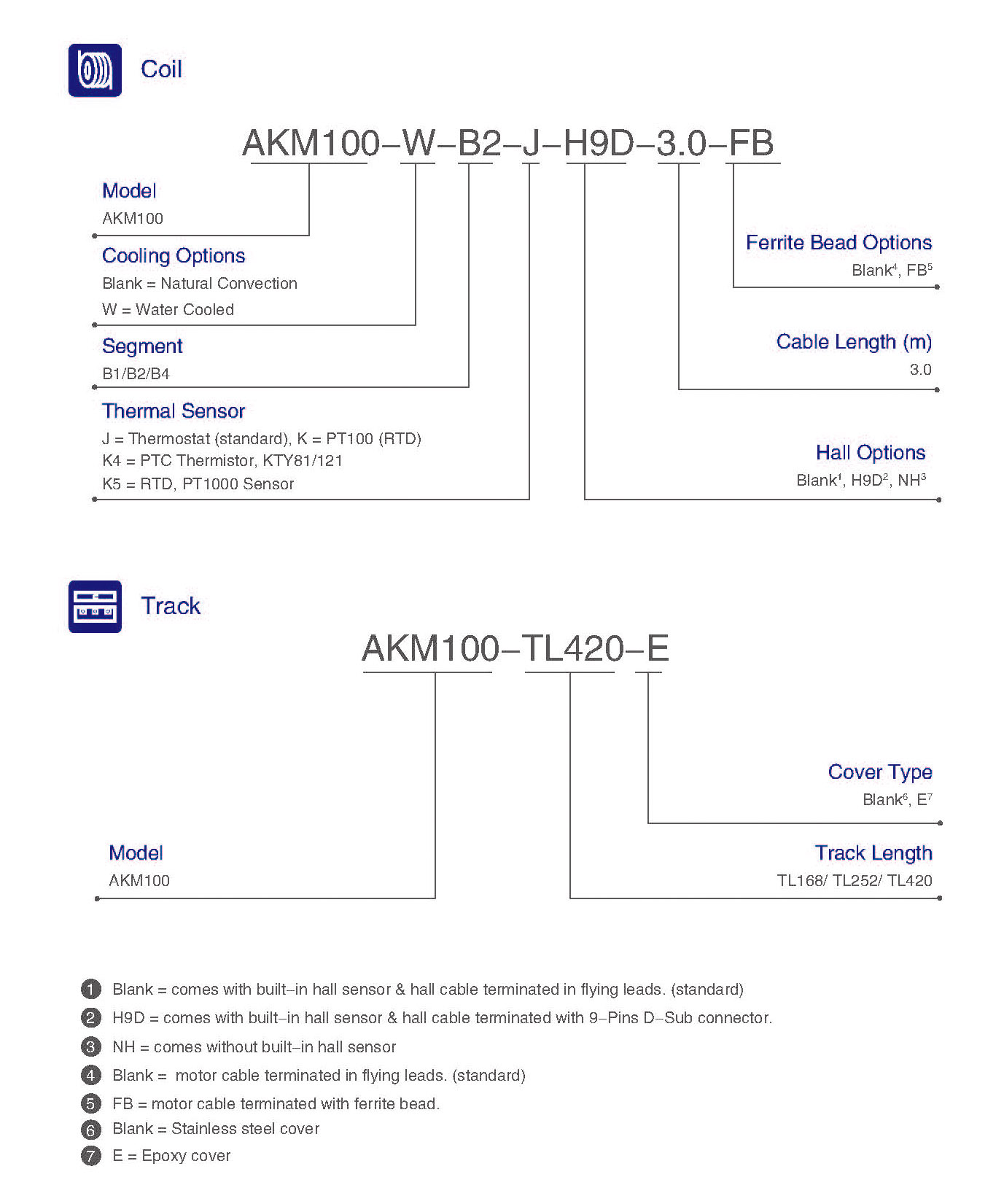

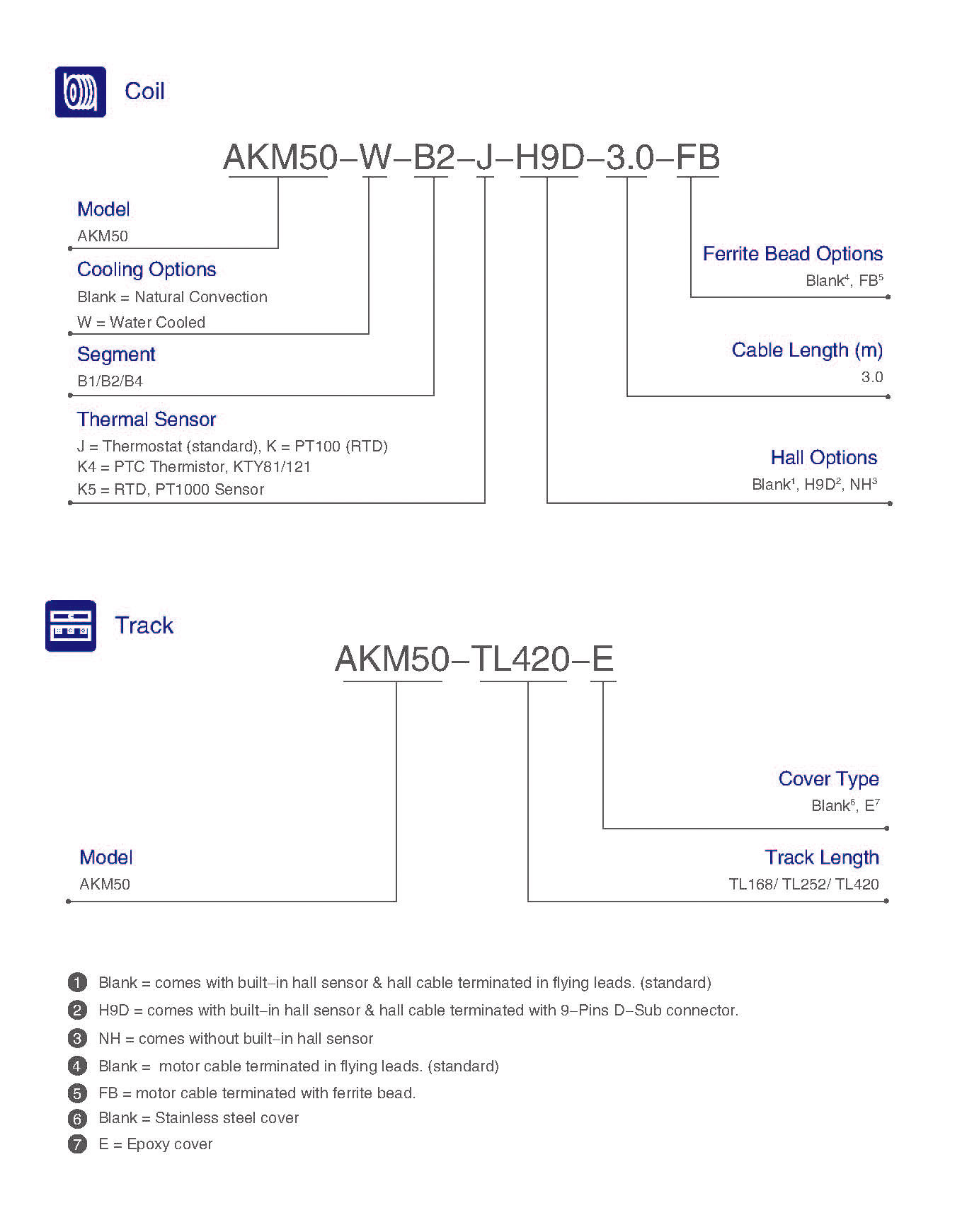

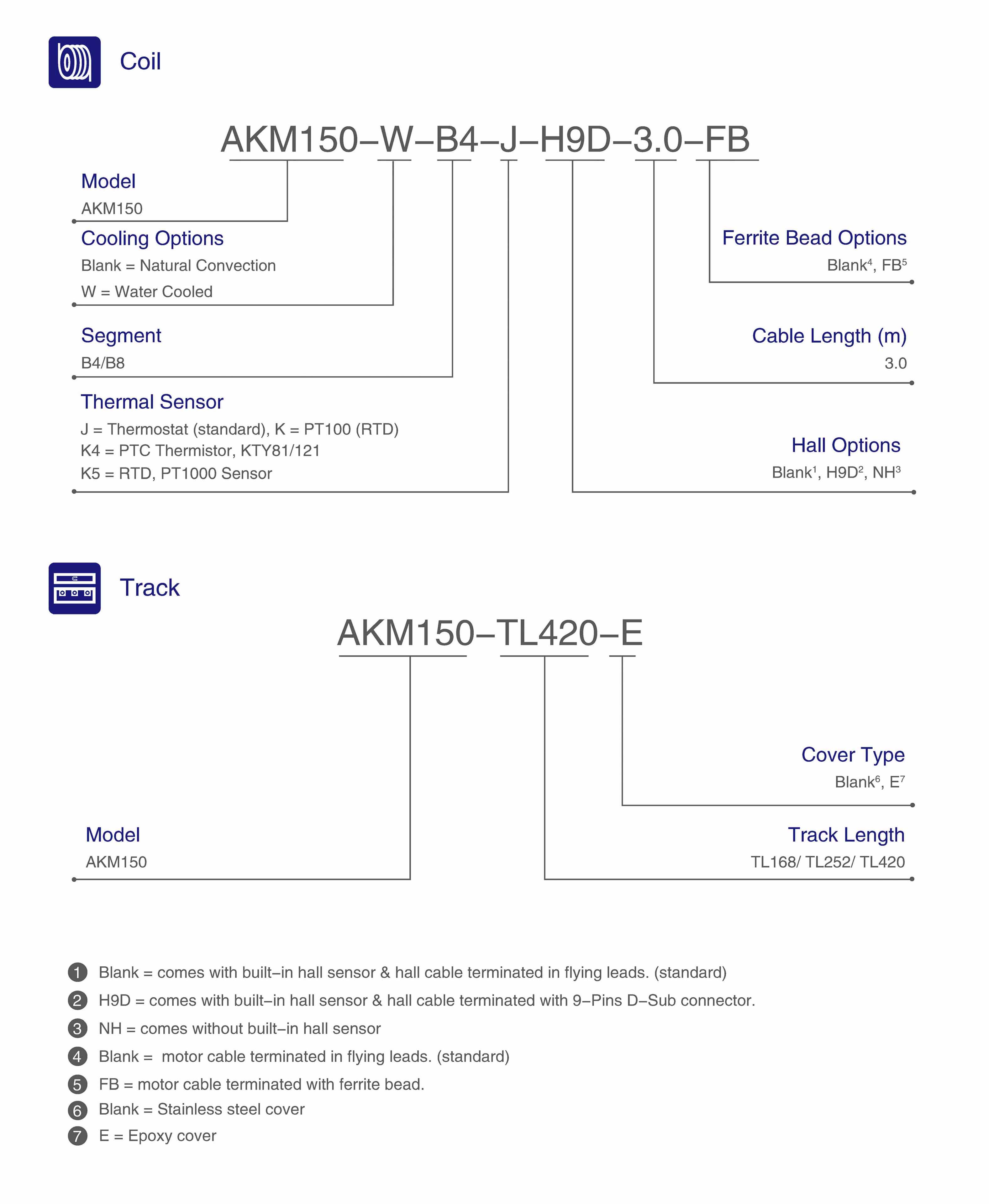

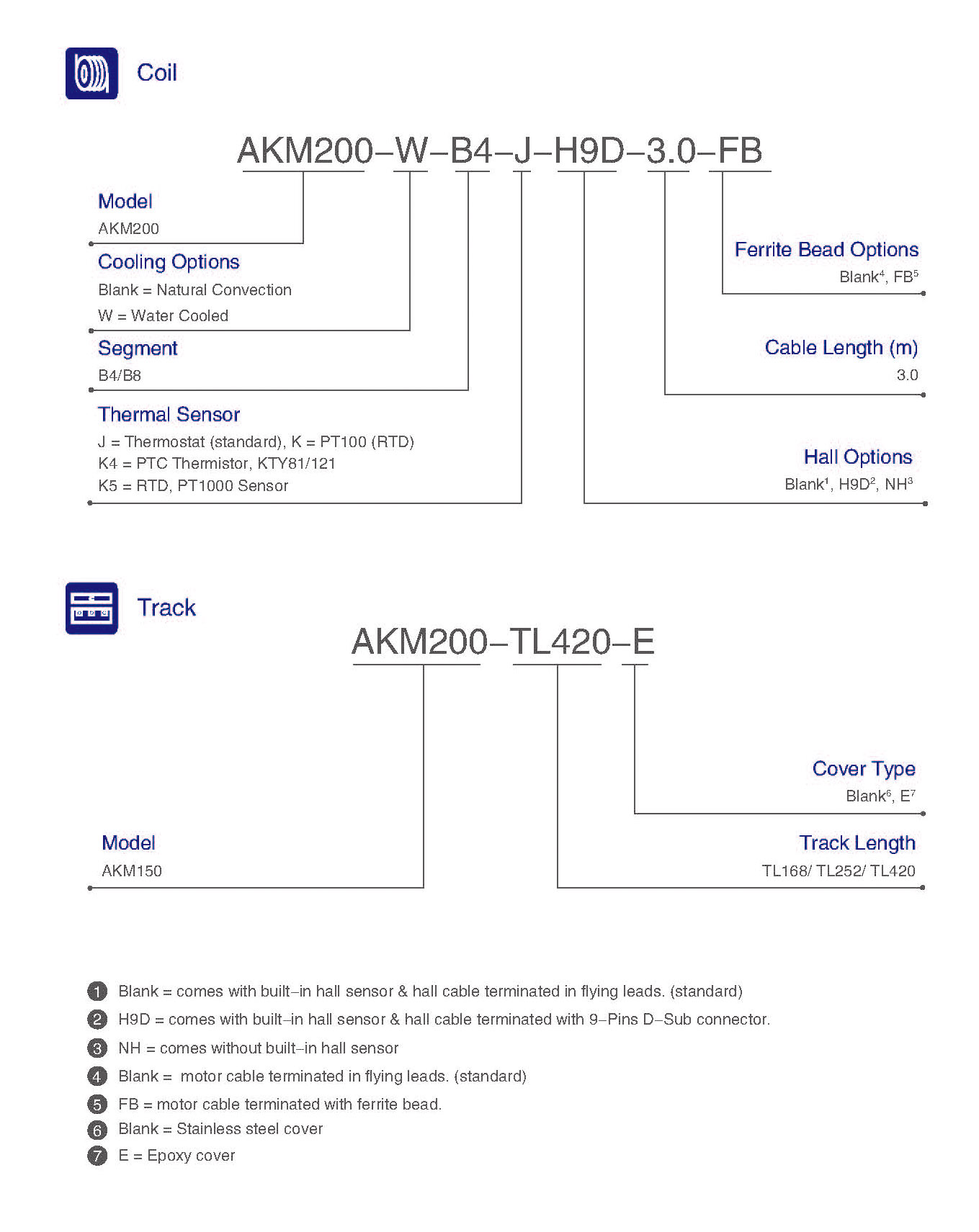

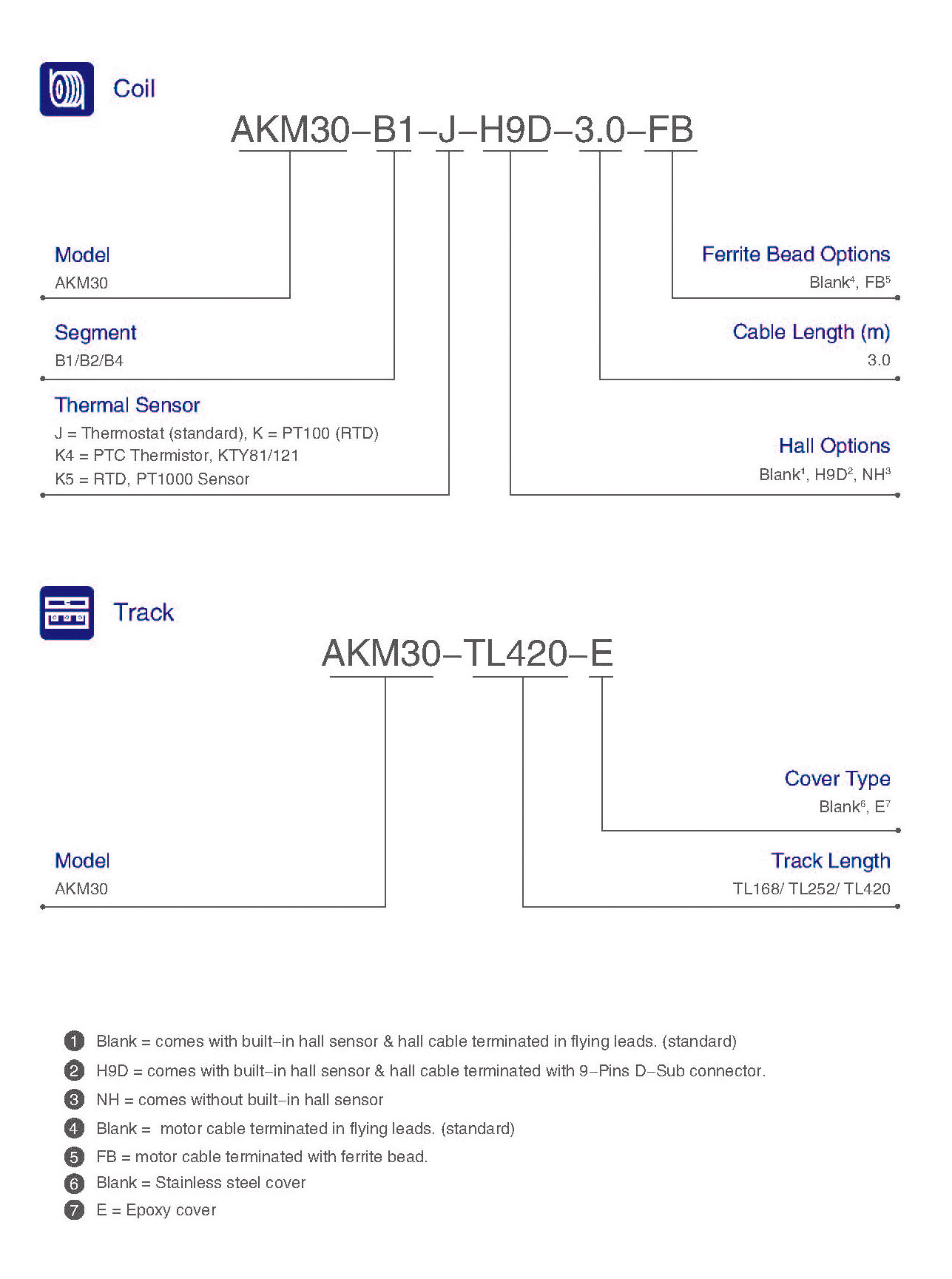

订阅信息
